Dimensões em milímetros

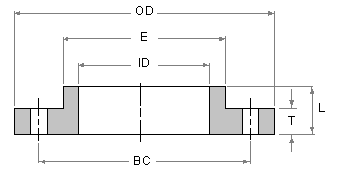

Flanges Slip-ON AWWA C207 - Classe D (150-175 psi)
| Diâmetro |
OD |
ID |
Nº de Furos |
Ø Parafuso |
BC |
T |
L |
E |
Peso (kg) |
| 4" |
228.6 |
116.1 |
8 |
15.9 |
190.5 |
12.7 |
22.2 |
134.9 |
3.1 |
| 5" |
254 |
143.8 |
8 |
19.1 |
215.9 |
14.3 |
31.8 |
160.3 |
4.1 |
| 6" |
279.4 |
170.7 |
8 |
19.1 |
241.3 |
14.3 |
31.8 |
192.1 |
4.8 |
| 8" |
342.9 |
221.5 |
8 |
19.1 |
298.5 |
14.3 |
31.8 |
246.1 |
6.9 |
| 10" |
406.4 |
276.4 |
12 |
22.2 |
362 |
17.5 |
31.8 |
304.8 |
10.2 |
| 12" |
482.6 |
327.2 |
12 |
22.2 |
431.8 |
17.5 |
31.8 |
365.1 |
15.1 |
| 14" |
533.4 |
360.4 |
12 |
25.4 |
476.3 |
19.1 |
31.8 |
400.1 |
19.4 |
| 16" |
596.9 |
411.2 |
16 |
25.4 |
539.8 |
19.1 |
31.8 |
457.2 |
23.6 |
| 18" |
635 |
462 |
16 |
28.6 |
577.9 |
19.1 |
31.8 |
504.8 |
23.7 |
| 20" |
698.5 |
512.8 |
20 |
28.6 |
635 |
19.1 |
31.8 |
558.8 |
28 |
| 22" |
749.3 |
563.6 |
20 |
31.8 |
692.2 |
25.4 |
44.5 |
616 |
41.6 |
| 24" |
812.8 |
614.4 |
20 |
31.8 |
749.3 |
25.4 |
44.5 |
663.6 |
47.9 |
| 26" |
870 |
665.2 |
24 |
31.8 |
806.5 |
25.4 |
44.5 |
723.9 |
54.3 |
| 28" |
927.1 |
716 |
28 |
31.8 |
863.6 |
25.4 |
44.5 |
774.7 |
59.3 |
| 30" |
984.3 |
766.8 |
28 |
38.1 |
914.4 |
25.4 |
44.5 |
825.5 |
65.3 |
| 32" |
1060.5 |
817.6 |
28 |
38.1 |
977.9 |
28.6 |
44.5 |
882.7 |
82.9 |
| 34" |
1111.3 |
868.4 |
32 |
38.1 |
1028.7 |
28.6 |
44.5 |
933.5 |
86.7 |
| 36" |
1168.4 |
919.2 |
32 |
38.1 |
1085.9 |
28.6 |
44.5 |
984.3 |
94.3 |
| 38" |
1238.3 |
970 |
32 |
38.1 |
1149.4 |
28.6 |
44.5 |
1035.1 |
107.6 |
| 40" |
1289.1 |
1020.8 |
36 |
38.1 |
1200.2 |
28.6 |
44.5 |
1092.2 |
113.2 |
| 42" |
1346.2 |
1071.6 |
36 |
38.1 |
1257.3 |
31.8 |
44.5 |
1143 |
130.5 |
| 44" |
1403.4 |
1122.4 |
40 |
38.1 |
1314.5 |
31.8 |
57.2 |
1193.8 |
151.7 |
| 46" |
1454.2 |
1173.2 |
40 |
38.1 |
1365.3 |
31.8 |
57.2 |
1244.6 |
158.4 |
| 48" |
1511.3 |
1224 |
44 |
38.1 |
1422.4 |
34.9 |
63.5 |
1295.4 |
184.7 |
| 50" |
1568.5 |
1274.8 |
44 |
44.5 |
1479.6 |
34.9 |
63.5 |
1346.2 |
191.2 |
| 52" |
1625.6 |
1325.6 |
44 |
44.5 |
1536.7 |
34.9 |
63.5 |
1397 |
203.3 |
| 54" |
1682.8 |
1376.4 |
44 |
44.5 |
1593.9 |
34.9 |
63.5 |
1447.8 |
215.8 |
| 60" |
1854.2 |
1528.8 |
52 |
44.5 |
1759 |
38.1 |
69.9 |
1600.2 |
274.7 |
| 66" |
2032 |
1681.2 |
52 |
44.5 |
1930.4 |
38.1 |
69.9 |
1752.6 |
326.4 |
| 72" |
2197.1 |
1833.6 |
60 |
44.5 |
2095.5 |
38.1 |
69.9 |
1905 |
364.6 |
| 78" |
2362.2 |
1986 |
64 |
50.8 |
2260.6 |
44.5 |
76.2 |
2063.8 |
459.2 |
| 84" |
2533.7 |
2138.4 |
64 |
50.8 |
2425.7 |
44.5 |
76.2 |
2222.5 |
527.2 |
| 90" |
2705.1 |
2290.8 |
68 |
57.2 |
2590.8 |
50.8 |
82.6 |
2381.3 |
649.6 |
| 96" |
2876.6 |
2443.2 |
68 |
57.2 |
2755.9 |
50.8 |
82.6 |
2540 |
735.1 |
| 102" |
3048 |
2595.6 |
72 |
63.5 |
2908.3 |
|
|
|
|
| 108" |
3219.5 |
2748 |
72 |
63.5 |
3067.1 |
|
|
|
|
| 114" |
3390.9 |
2900.4 |
76 |
69.9 |
3219.5 |
|
|
|
|
| 120" |
3562.4 |
3052.8 |
76 |
69.9 |
3371.9 |
|
|
|
|
| 126" |
3733.8 |
3205.2 |
80 |
76.2 |
3537 |
|
|
|
|
| 132" |
3905.3 |
3357.6 |
80 |
76.2 |
3702.1 |
|
|
|
|
| 144" |
4248.2 |
3662.4 |
84 |
82.6 |
4019.6 |
|
|
|
|
