Engates Rápidos - CAMLOCK

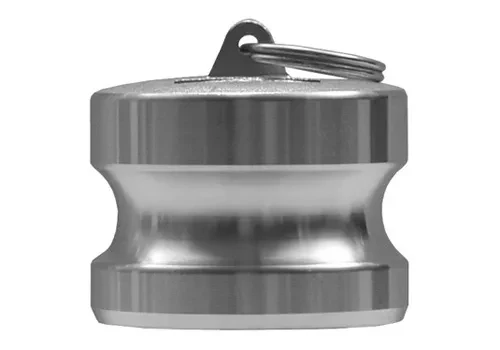

Plugue Adaptador - Fluxo DP

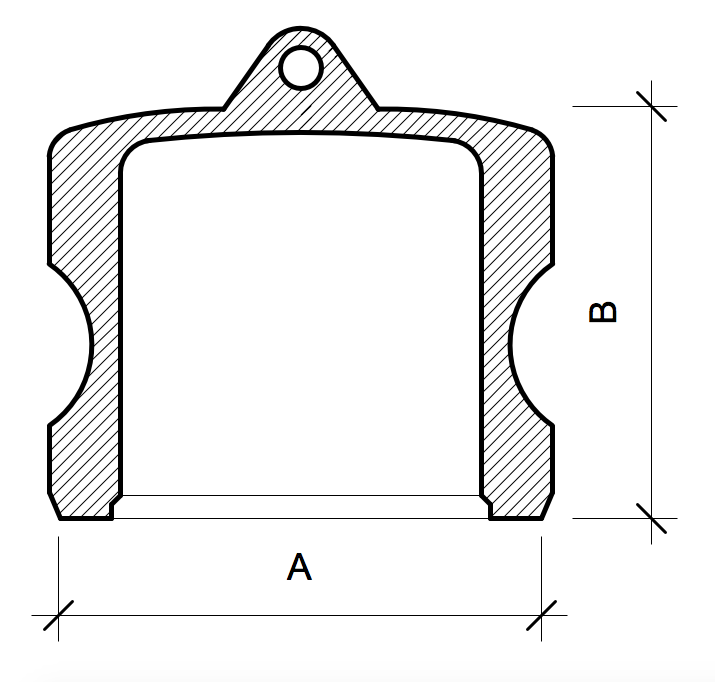

Dimensões (mm)
Plugue Adaptador - Fluxo DP
| Tamanho do Camlock | 3/4" 20mm |
1" 25mm |
1¼" 32mm |
1½" 40mm |
2" 50mm |
2½" 65mm |
3" 80mm |
4" 100mm |
5" 125mm |
6" 150mm |
| A | 32 | 36.7 | 45.5 | 53.4 | 63 | 75.8 | 91.5 | 119.5 | 145.2 | 175.9 |
| B | 31.5 | 37.5 | 42.5 | 44.5 | 50.5 | 52.5 | 54.5 | 58 | 58 | 68 |
