Engates Rápidos - CAMLOCK
Adaptador Com Rosca Macho - Fluxo F

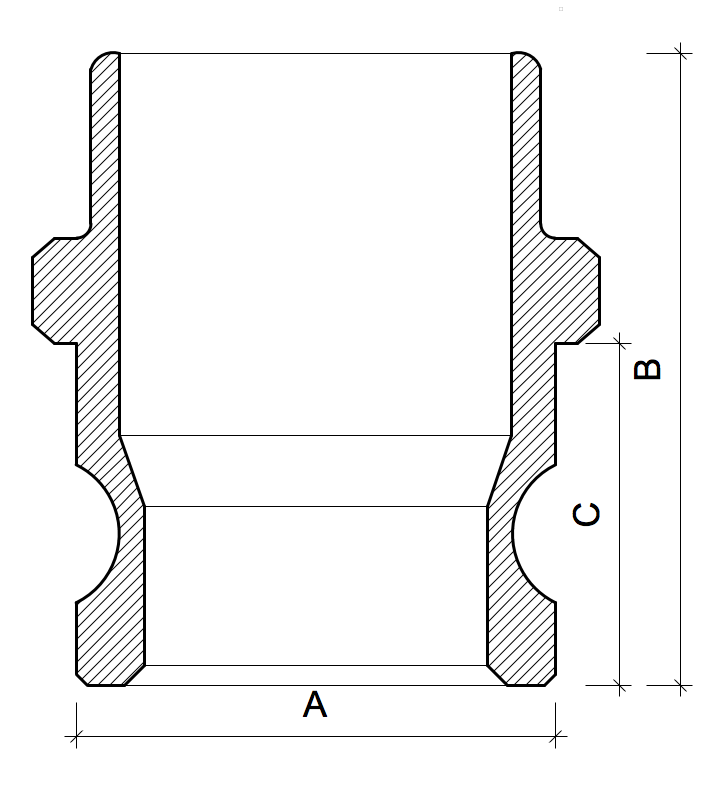

Dimensões (mm)
Adaptador Com Rosca Macho - Fluxo F
| Camlock Size | ¾" 20mm |
1" 25mm |
1¼" 32mm |
1½" 40mm |
2" 50mm |
2½" 65mm |
3" 80mm |
4" 100mm |
5" 125mm |
6" 150mm |
| A | 32 | 36.7 | 45.5 | 53.4 | 63 | 75.8 | 91.5 | 119.5 | 145.2 | 175.9 |
| B | 62 | 72 | 78 | 81 | 89 | 99 | 99 | 107 | 112 | 115 |
| C | 25.3 | 35.3 | 40.5 | 42.5 | 48.5 | 50.5 | 51.5 | 53.5 | 54.3 | 57.8 |
